Gearless

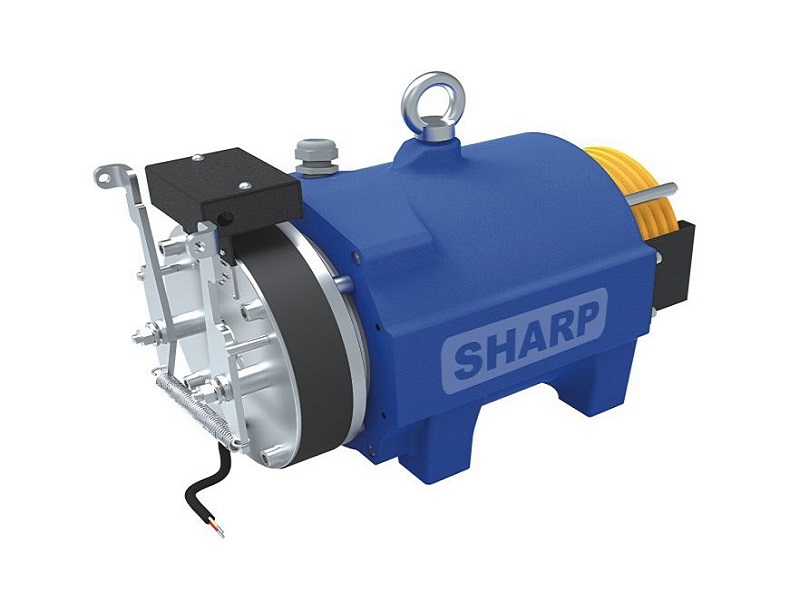

SEG-05
| Duty Load (Kg) |
270 to 408 |
| Speed (m/sec) |
0.32 to 0.50 |
| Static Load (Kg) |
1000 |
| Sheave Diameter (mm) |
160, 200 |
| Power (Kw) |
0.6 to 1.3 |
| Roping |
2:1 |
| Weight of Machine (Kg) |
113 |
View Image

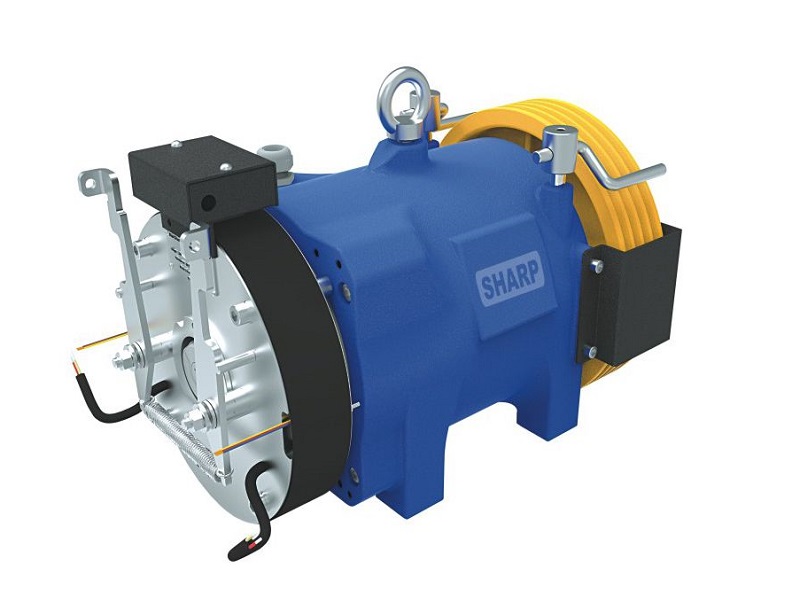

SEG-10
| Duty Load (Kg) |
340 to 544 |
| Speed (m/sec) |
0.65 to 1.50 |
| Static Load (Kg) |
1700 |
| Sheave Diameter (mm) |
240, 320 |
| Power (Kw) |
1.4 to 5.3 |
| Roping |
2:1 |
| Weight of Machine (Kg) |
143 |
View Image

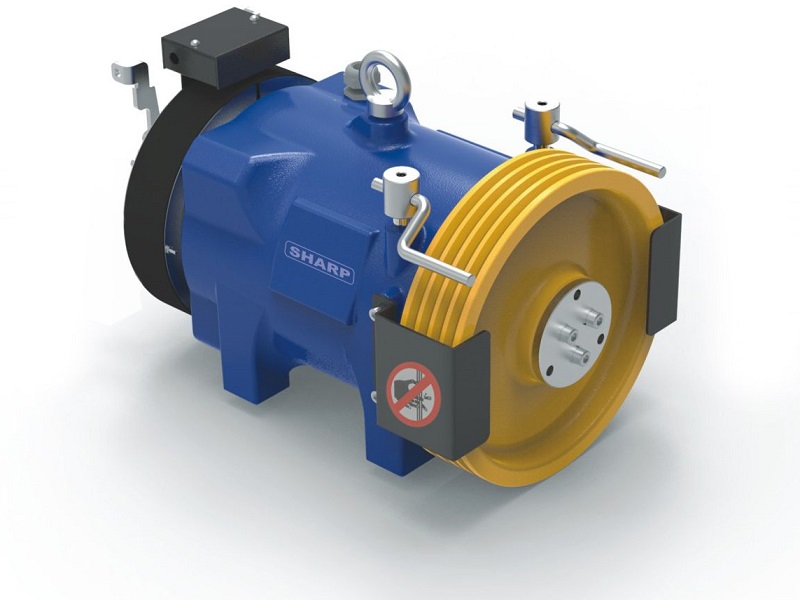

SEG-20
| Duty Load (Kg) |
544 to 680 |
| Speed (m/sec) |
0.65 to 1.50 |
| Static Load (Kg) |
1700 |
| Sheave Diameter (mm) |
240, 320 |
| Power (Kw) |
2.5 to 7.0 |
| Roping |
2:1 |
| Weight of Machine (Kg) |
160 |
View Image

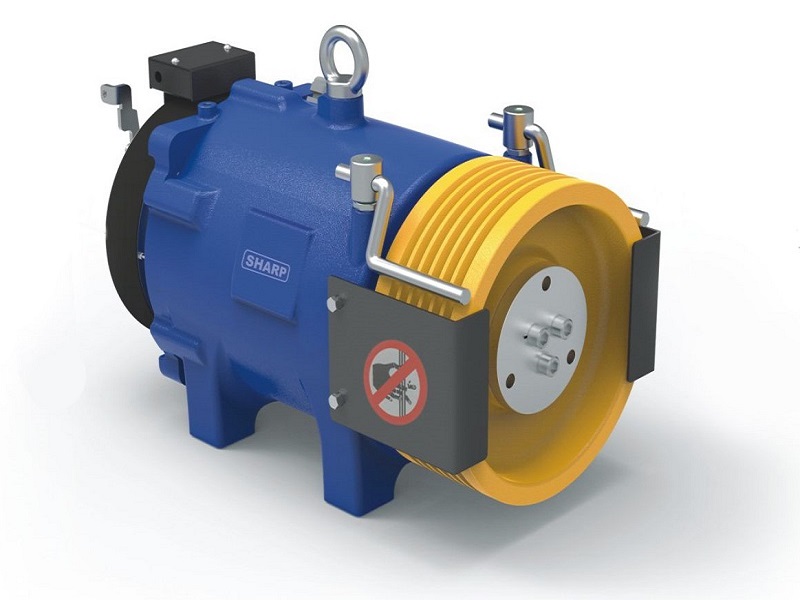

SEG-30
| Duty Load (Kg) |
680 to 1020 |
| Speed (m/sec) |
0.65 to 1.50 |
| Static Load (Kg) |
2400 |
| Sheave Diameter (mm) |
240, 320 |
| Power (Kw) |
3.1 to 10.1 |
| Roping |
2:1 |
| Weight of Machine (Kg) |
220 |
View Image

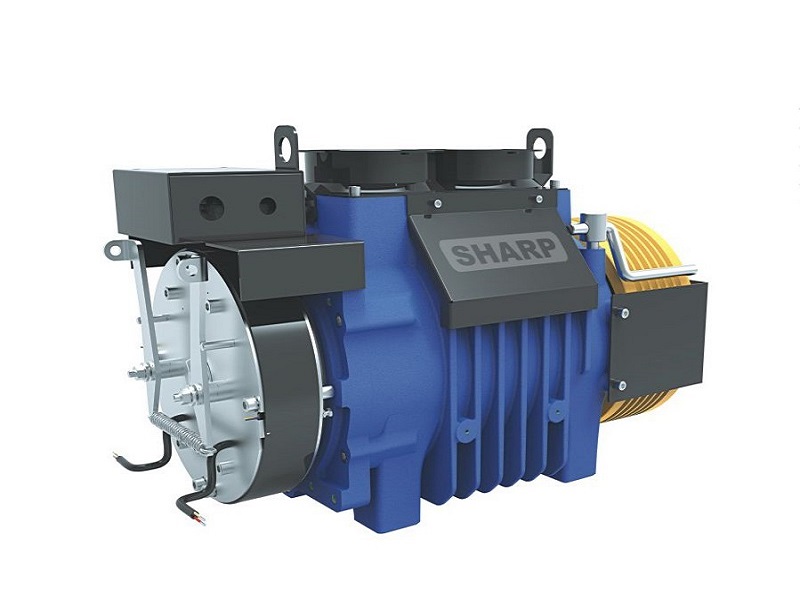

SEG-40
| Duty Load (Kg) |
884 to 1088 |
| Speed (m/sec) |
0.65 to 1.50 |
| Static Load (Kg) |
3200 |
| Sheave Diameter (mm) |
320 |
| Power (Kw) |
4.0 to 11 |
| Roping |
2:1 |
| Weight of Machine (Kg) |
320 |
View Image

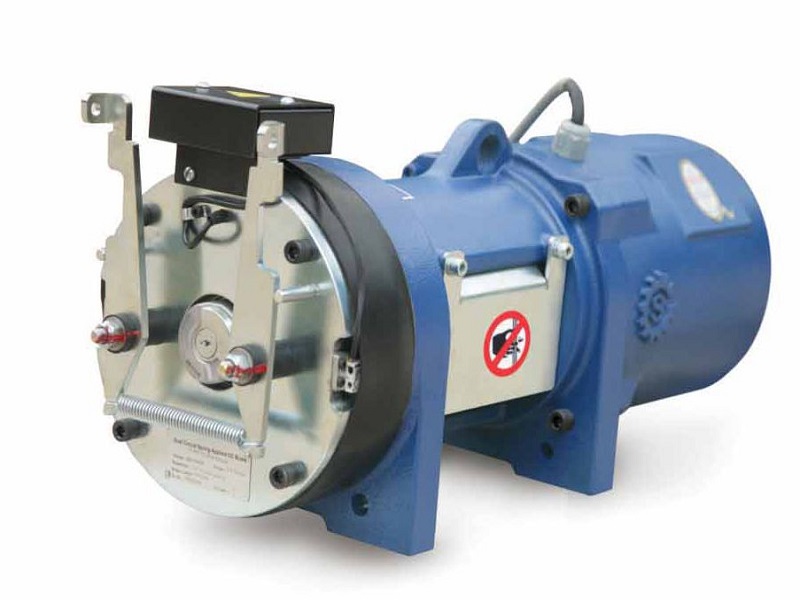

SEG-Beta
| Voltage (V) |
400 V |
| Suspension |
2:1 |
| Brake |
110V DC |
| Static Load (Kg) |
2000 |
| Encoder |
ERN 1387 |
| Pole |
12 |
| Ins. Class |
IP 42 |
| Rating |
S5[40%] |
View Image
