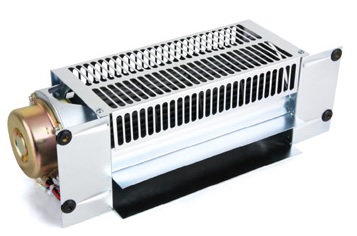

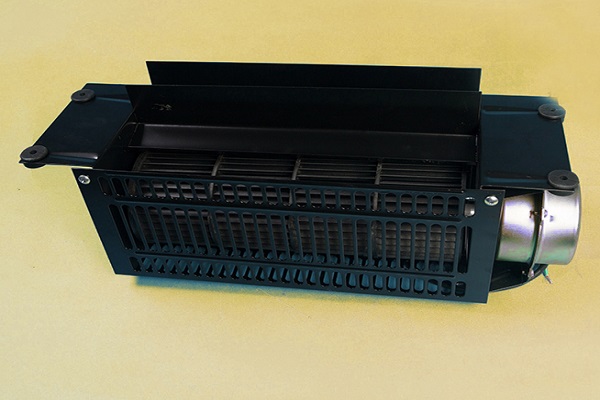

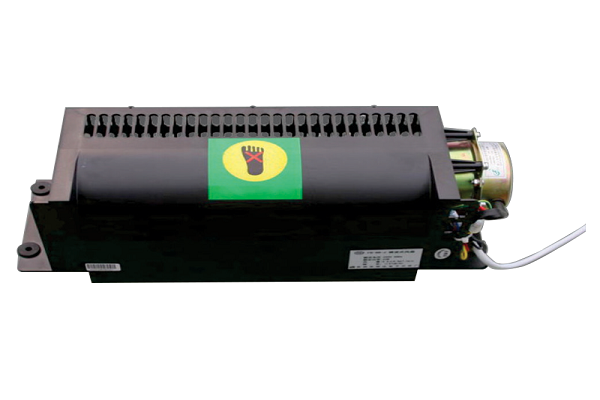

ELEVATOR FAN

Technical data:

1.Voltage:AC230V,AC220V,AC110V 50/60HZ

2.Impeller size Diameter:91X266mm

3.Air put size:43X270mm

4.Power:25W

5.Dimension:420X152X132mm

6.Weight:2.8kg



Features:

1.New design,adopting multi-wing impeller

2.Low noise,large input air,high-wind pressure

3.Smart,light and long life

4.convenience to load and discharge,safety



Technical performance:

1.Transmission speed:1200±100rpm

2.Noise:≤45db(A)

3.Blast volume 4.8±0.5m3/min

Technical data:

1.Voltage:AC220V-240V AC100V-120V 50/60HZ

2.Impeller size Diameter:100X350mm

3.Air put size:36X430mm

4.Power:35W

5.Dimension:536X150X130mm



Features:

1.New design,adopting multi-wing impeller

2.Low noise,large input air,high-wind pressure

3.Smart,light and long life

4.convenience to load and discharge,safety



Technical performance:

1.Transmission speed:1100±100rpm,900±100rpm

2.Noise:≤50db(A), ≤46db(A)

3.Blast volume 7.5±0.3m3/min,5.5±0.3m3/min

Technical data:

1.Voltage:AC220V-240V AC100V-120V 50/60HZ

2.Impeller size Diameter:100X350mm

3.Air put size:34X360mm

4.Power:35W

5.Dimension:465X155X130mm



Features:

1.New design,adopting multi-wing impeller

2.Low noise,large input air,high-wind pressure

3.Smart,light and long life

4.convenience to load and discharge,safety



Technical performance:

1.Transmission speed:1200±100rpm,1000±100rpm

2.Noise:≤50db(A), ≤46db(A)

3.Blast volume 7±0.3m3/min,5±0.3m3/min
